SECUREFIX DIRECT 3 Ton 0-30MM

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

SECUREFIX DIRECT 3 Ton 0-30MM Vertical Plate Lifting Clamp - 3000KG Grip Lift

Vertical Plate Lifting Clamp Lifting Capacity - 3 Ton Jaw Opening - 0-30MM Minimum Steel Thickness - 6MM Minimum Load - 600KG Conforms To BS EN 13155 CODE A MAX(MM) A MIN(MM) B MAX(MM) B MIN(MM) C(MM) D(MM) E(MM) F(MM) G(MM) H(MM) I(MM) J(MM) SFVLC0.75 200 190 105 100 45 125 36 25 25 26.5 11 43 SFVLC1.5 330 340 175 180 57 198 79 46 29 67 17 76 SFVLC1.6 380 355 195 185 58 180 74 60 47 67 17 76 SFVLC2 375 335 180 173 60 204 74 57 36 67 17 91 SFVLC3 438 390 220 215 83 238 80 62 46 75 21 86 SFVLC3.2 435 400 245 240 83 252 78 63 60 77 22 93 SFVLC4.5 435 410 240 235 81 255 75 63 56.5 75 22 92 These vertical lifting plate clamps are used for vertical lifting and turning of plate material. These clamps do not slip when lifting force is applied or when being lowered. These clamps are equipped with an articulating shackle to provide a versatile and smooth operation. Please note that the minimum loading weight is 20% of swl. The minimum thickness is 20% of the jaw opening plus the minimum

from
£125.00
Buy now

Availablity: 3-5 days

Free shipping & return for orders over $200

Related products

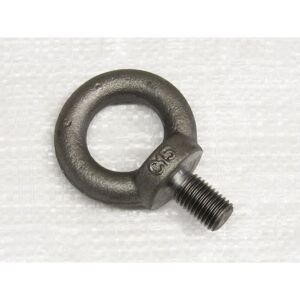

Securefix Direct - 30MM 3.2 Ton Self Colour DIN580 Eyebolt - M30 Drop Forged Lifting Eye Bolt 3200KG Metric

Securefix Direct - 30MM 3.2 Ton Self Colour DIN580 Eyebolt - M30 Drop Forged Lifting Eye Bolt 3200KG Metric

from £14.50

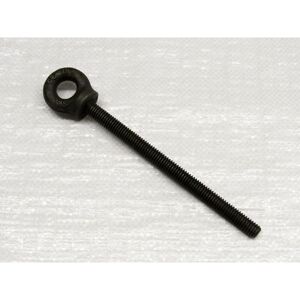

Securefix Direct - 3/4' 1.4 Ton Self Colour Collar Long Shank Eyebolt - 1400KG Imperial Eye 20MM Bolt

Securefix Direct - 3/4' 1.4 Ton Self Colour Collar Long Shank Eyebolt - 1400KG Imperial Eye 20MM Bolt

from £13.50

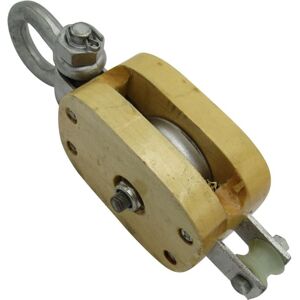

Securefix Direct - 0.2 Ton 3' Single Wood Block With Shackle - 10MM Wire Rope Wooden
