Securefix Direct - M24 Lifting Eye Nut - 24MM Zinc Plated Threaded Eyenut DIN582 1.8 Ton

Specifications: Product Code: SFDINEN24ZP Product Weight: 0.75kg 1800KG Drop Forged Eye Nut Thread Diameter - M24 Conforms To - DIN582 Finish - Zinc Plated Product Code SWL (Ton) A (MM) B (MM) C (MM) D (MM) E (MM) F (MM) G (MM) Pitch SFDINEN06 0.07 19.8 36.1 19.6 6 9.2 19 9.5 1.00 SFDINEN06ZP 0.07 19.5 36.3 19.9 6 9 19 9 1.00 SFDINEN08 0.14 20.1 36.3 19.4 8 9 18.3 9.2 1.25 SFDINEN08ZP 0.14 20 36 19.7 8 9 19 9 1.25 SFDINEN10 0.23 25.3 44.6 24.2 10 11.5 23 10 1.50 SFDINEN10ZP 0.23 24.3 45.3 24.4 10 11 23 10.7 1.50 SFDINEN12 0.34 30 53.8 29.4 12 15.5 23 12 1.75 SFDINEN12ZP 0.34 30.5 53 29.4 12 12 26.5 13.6 1.75 SFDINEN16 0.7 35 62.6 33.7 16 15 30 15 2.00 SFDINEN16ZP 0.7 34.7 62.7 34.2 16 15 30 15.4 2.00 SFDINEN20 1.2 41 72 38.5 20 18 36.8 16.8 2.5 SFDINEN20ZP 1.2 40 71.5 38.5 20 19 36.5 16.5 2.5 SFDINEN24 1.8 50 90 48.5 24 22 46 22.5 3.00 SFDINEN24ZP 1.8 50 89.4 49.4 24 21 44 21.1 3.00 SFDINEN30 3.2 64.5 108 58.6 30 29 61.5 24.3 3.5 SFDINEN30ZP 3.2 65 108 59 30 26 58.4 24.5 3.5 SFDINEN36

from
£13.00
Buy now

Availablity: 3-5 days

Free shipping & return for orders over $200

Related products

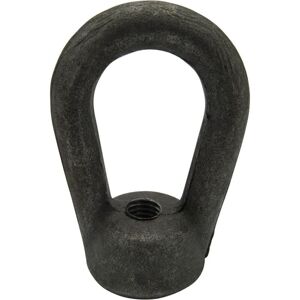

SECUREFIX DIRECT M30 3.65 Ton Self Colour Bow Nut - 30MM Drop Forged Eye Nut Lifting Bownut 3650KG

SECUREFIX DIRECT M30 3.65 Ton Self Colour Bow Nut - 30MM Drop Forged Eye Nut Lifting Bownut 3650KG

from £14.50

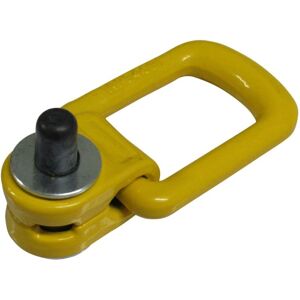

Securefix Direct - Swivel Lifting Rings Bolt On M27 (Grade 80 Lift Attachment Point Eyebolt Elongated)

Securefix Direct - Swivel Lifting Rings Bolt On M27 (Grade 80 Lift Attachment Point Eyebolt Elongated)

from £84.00

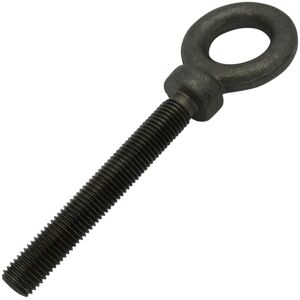

Securefix Direct - M16 Lifting Eye Bolt - Long Shank Dynamo Zinc Plated Threaded Eyebolt BS4278 0.63 Ton 16MM
