TLILY 10X Dc 12V Relay

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

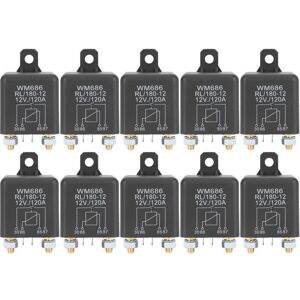

TLILY 10X dc 12V Relay Battery Isolating Relay 12V / 120A Load for Car Trucks Car (12V / 120A)

Contact form: Normally open Contact Ratings: None: 120A 14 / 28VDC Contact resistance: 100mMax at 6V DC 1A Max switching current: 300A (5 ms) Max switching voltage: 75VDC Max switching power: 2000W Expected lifespan Electric: 100,000 operations Mechanical life: 10,000,000 operations Coil Specification: Rated voltage (): 12V Coil resistance (4,8W / 2,4W): 30/60 Max Let Voltage (): 6.0 ~ 8.0 Mix message (): 1.2 ~ 3.6 Max Applicable Voltage (): 15.6 characteristics: Temperature range: -30 ~ + 80 Celsius Vibration resistance: 10 ~ 55Hz, 1.5mm Impact resistance: Surgery Extreme: 10g : 100g Humidity: 40% ~ 85% Insulation resistance: 100mOhm min at 500VDC Dielectric strength between open contacts 500VAC (for one minute / s) Between contact and coil: 750VAC (for one minute / s) Operating time: 15ms Release time: 10ms Material: Plastic Color: Black Package size: 5 x 4 x 4cm Package Contents: 10 x Heavy Duty Split Charger 120A ON / OFF Relay Only the above package content, other products are

from

£36.41

Buy now

Availablity: 3-5 days

Free shipping & return for orders over $200

TLILY 10X wifi Relay Controller Module, dc 5V 8V-80V ESP8266 Wireless Controller Module ESP-12F for iot Smart

from £42.60

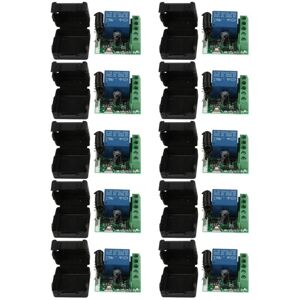

Tlily - 10X 12V dc 1CH 433MHz rf Remote Control Switch Without Relay Module Receiver Universal 433 MHz Kit
